Wire conveyors

The right solution for you

Here we present all the different types of wire conveyors that we produce today. We would gladly help you with your request and in order to offer you the correct solution, we need to know the following:

• Product size
• Type of process
• Weight of products
• Size of existing rollers
• Temperature
• Inclination, if required

Please use the form at the bottom of the page if you would like to submit a request to us directly. Please enter if you have any product type preferences.

Product types:

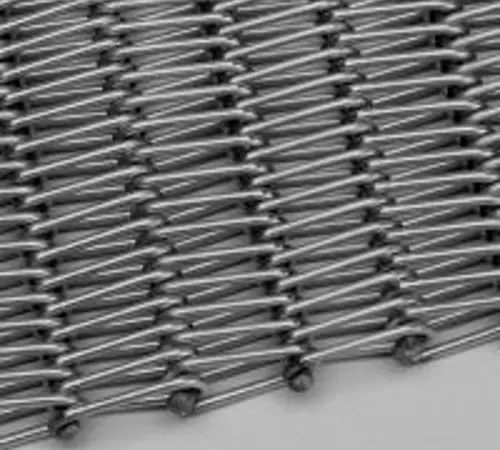

Type No. 0101

Balanced wire belt made of round wire spirals with plain cross wires and welded selvages.

Application: Heat treatment industry.

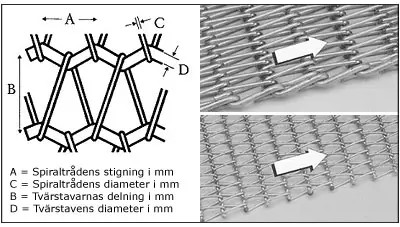

Pitch of spiral wire: As required
Pitch of cross wire: As required
Diameter of spiral wire: 1,2 - 4,0 mm
Axelns diameter: 3,0 - 6,0 mm

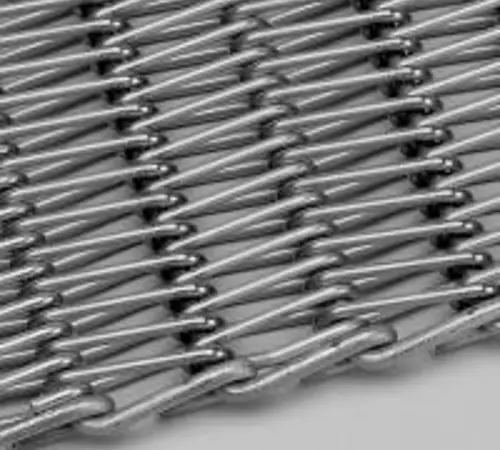

Type No. 0102

Balanced wire belt made of round wire spirals with plain cross wires and hooked selvages.

Application: Heat treatment, baking and engineering industries.
Pitch of spiral wire: As required
Pitch of cross wire: As required
Diameter of spiral wire: 1,2 - 4,0 mm
Diameter of cross wire: 2,0 - 6,0 mm

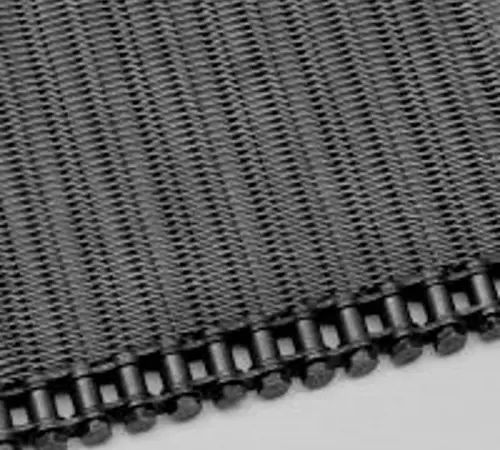

Type No. 0103

Balanced wire belt made of round wire spirals with plain cross wires and 1/2" chain.

Application: Foodstuffs and engineering industry.
Pitch of spiral wire: As required
Pitch of cross wire: 12,7 mm
Diameter of spiral wire: 1,2 - 1,5 mm
Diameter of cross wire: 3,5 - 4,0 mm

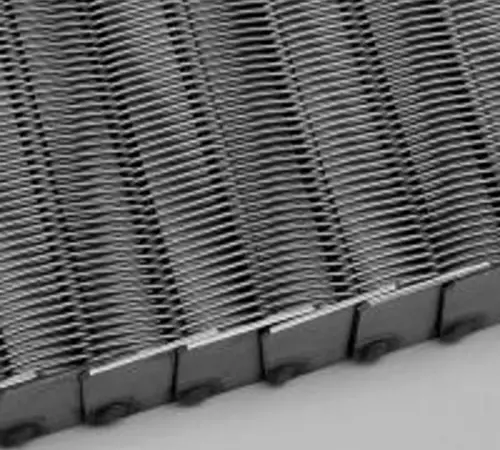

Type No. 0105

Balanced wire belt made of round wire spirals with plain cross wires and welded guard plates.

Application: Heat treatment industry.
Pitch of spiral wire: As required
Pitch of cross wire: 25 eller 32 mm
Spiraltrådens diameter: 2,5 - 4,0 mm
Diameter of cross wire: 4,0 mm

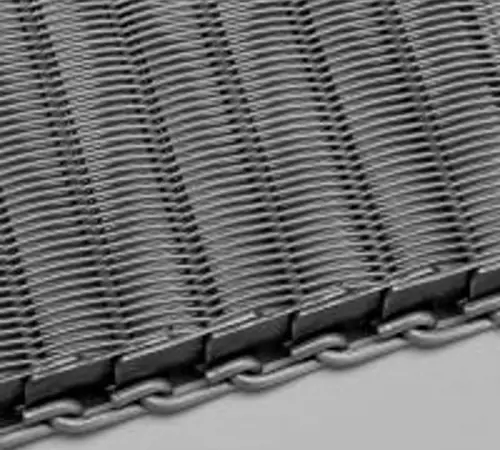

Type No. 0106

Balanced wire belt made of round wire spirals with plain cross wires and hooked selvages with guard plates.

Application: Heat treatment and engineering industries
Pitch of spiral wire: As required
Pitch of cross wire: 25 eller 32 mm
Diameter of spiral wire: 2,0 - 4,0 mm
Diameter of cross wire: 4,0 mm

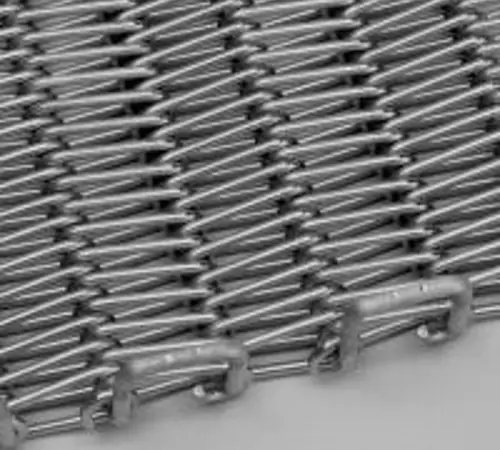

Type No. 0108

Balanced wire belt made of round wire spirals with plain cross wires and bent eyes-loop and welded selvages.

Application: Heat treatment and engineering industries
Pitch of spiral wire: As required
Pitch of cross wire: As required
Diameter of spiral wire: 3,0 - 5,6 mm
Diameter of cross wire: 4,0 mm

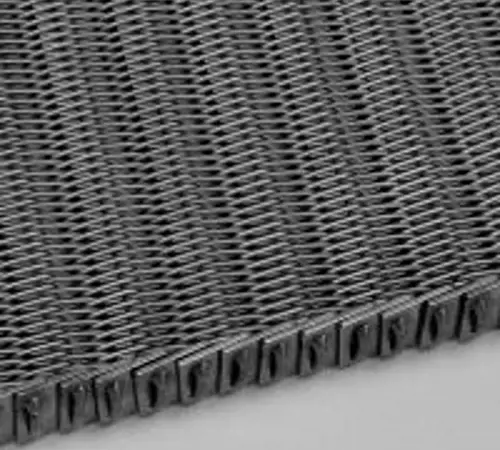

Type No. 0109

Balanced wire belt made of round wire spirals with plain cross wires. Cross wires bent up to 90 degrees and welded to guard plates.

Application: Heat treatment and engineering industries
Pitch of spiral wire: As required
Pitch of cross wire: 11,0 mm
Diameter of spiral wire: 1,2 - 1,6 mm
Diameter of cross wire: 3,0 - 3,5 mm

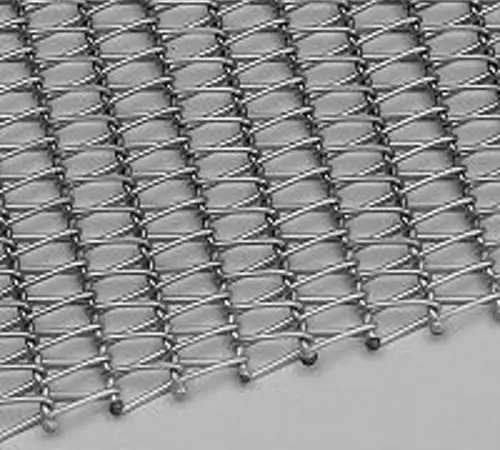

Type No. 0201

Balanced wire belt made of round wire spirals with crimped cross wires and welded selvages.

Application: Bakery, fish-processing, foodstuffs, confectionery and non-woven fabric industries.
Spiralens stigning: 2,5 - 25 mm
Pitch of cross wire: 3,5 - 40 mm
Diameter of spiral wire: 1,0 - 3,0 mm
Diameter of cross wire: 1,0 - 3,5 mm

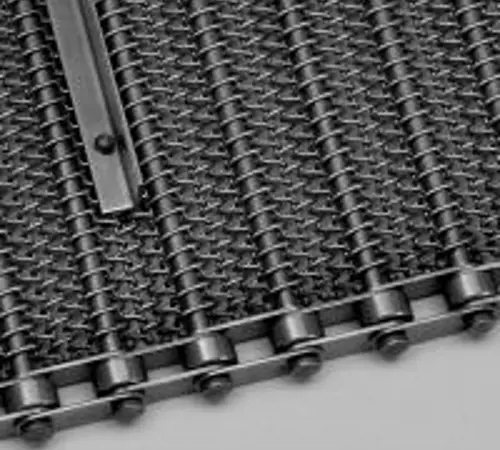

Type No. 0203

Balanced wire belt made of round wire spirals with crimped cross wires and chains on the selvages.

Application: Bakery, fish-processing, foodstuffs and confectionery industries.
Pitch of spiral wire: 2,5 - 25 mm
Pitch of cross wire: 3,5 - 40 mm
Diameter of spiral wire: 1,0 - 3,0 mm
Diameter of cross wire: 1,0 - 3,5 mm

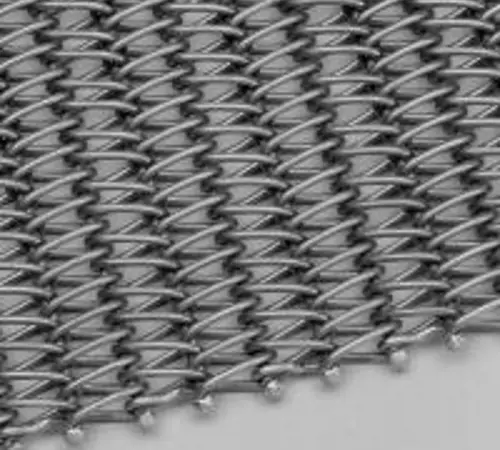

Type No. 0210

Balanced wire belt made of double round wire spirals with crimped cross wires and welded selvages.

Application: Heat treatment industry.
Pitch of spiral wire: 9,0 mm
Pitch of cross wire: 17,0 mm
Diameter of spiral wire: 2,0 - 3,0 mm
Diameter of cross wire: 2,0 - 3,5 mm

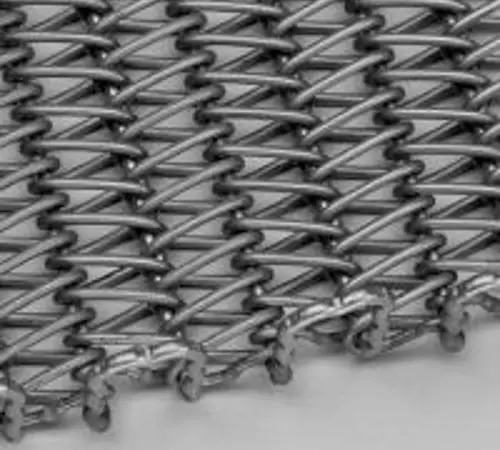

Type No. 0211

Balanced wire belt made of double round wire spirals with crimped cross wires and bent eyes-loop with welded selvages.

Application: Heat treatment industry.
Pitch of spiral wire: 9,0 mm
Pitch of cross wire: 17,0 mm
Diameter of spiral wire: 2,0 - 3,0 mm
Diameter of cross wire: 2,0 - 3,5 mm

Type No. 0214

Balanced wire belt made of round wire spirals with crimped cross wires. 4 pieces of spirals attached together with every cross wire. Cross wires bent up to 90 degrees and welded to guard plates.

Application: Heat treatment industry.
Pitch of cross wire: 11 ,7 mm
Diameter of spiral wire: 1 ,2 - 1,6 mm
Diameter of cross wire: 1 ,5 - 2,5 mm

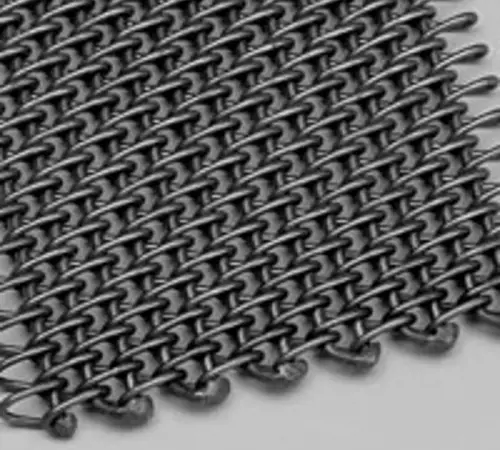

Type No. 0301

Wire belt made of round wire spirals spun in to each other with plain cross wires and welded selvages.

Application: Heat treatment industry.
Pitch of spiral wire: 11,0 mm
Pitch of cross wire: 12,0 mm
Diameter of spiral wire: 2,0 - 3,0 mm
Diameter of cross wire: 2,5 - 4,0 mm

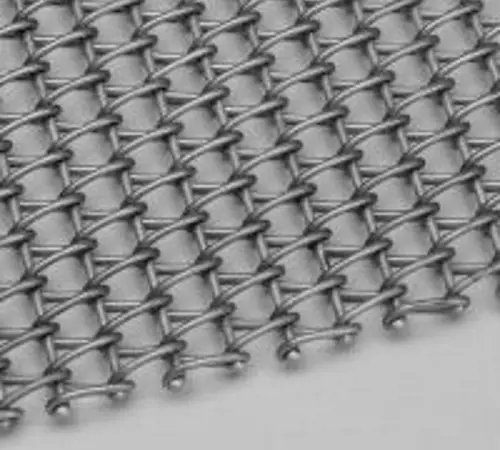

Type No. 0401

Wire belt made of round wire spirals spun in to each other with plain cross wires and welded selvages.

Application: Heat treatment industry.
Pitch of spiral wire: 15,0 mm
Pitch of cross wire: 18,0 mm
Diameter of spiral wire: 2,0 - 3,0 mm
Diameter of cross wire: 2,0 - 4,0 mm

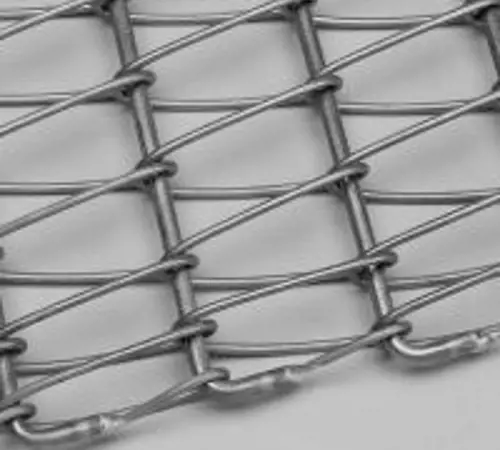

Type No. 0412

Wire belt made of round wire spirals spun in to each other with plain cross wires bent 90 degrees backwards and welded in the spirals.

Användning: Värmebehandlingsindustrin.
Pitch of spiral wire: 25 alt. 30 mm
Pitch of cross wire: 40,0 alt. 50,8 mm
Diameter of spiral wire: 2,65 - 3,0 mm
Diameter of cross wire: 5 ,0 - 5,5 mm

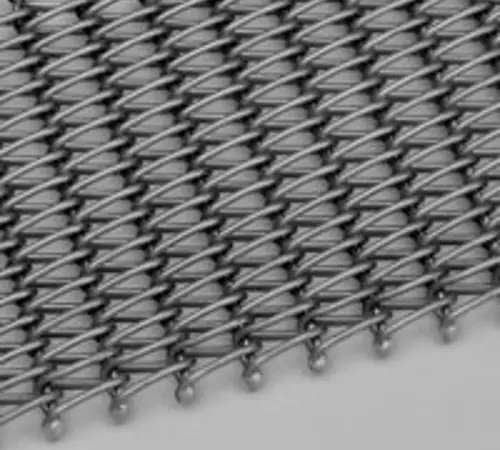

Type No. 0501

Wire belt made of double round wire spirals spun in to each other with plain cross wires and welded selvages.

Application: Heat treatment industry.
Pitch of spiral wire: 18,5 mm
Pitch of cross wire: 20,5 mm
Diameter of spiral wire: 2,5 - 3,0 mm
Diameter of cross wire: 2,5 - 4,0 mm

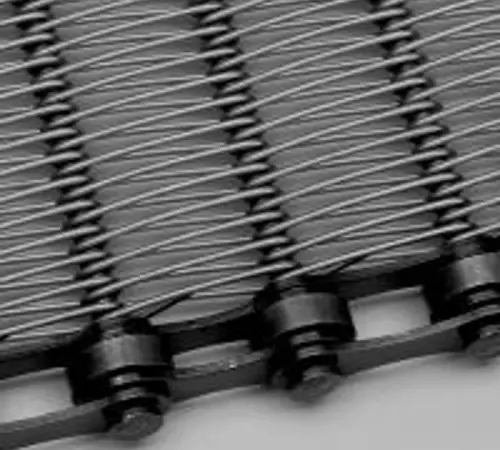

Type No. 0603

Wire belt made of round wire spirals with plain cross wires and 2" chains on the selvages.

Application: Industrial washing machines and rinse baths after heat treatment plus the fish-processing industry.
Pitch of spiral wire: As required
Pitch of cross wire: 50,8 mm
Diameter of spiral wire: 2,5 - 4,0 mm
Diameter of cross wire: 8,0 mm

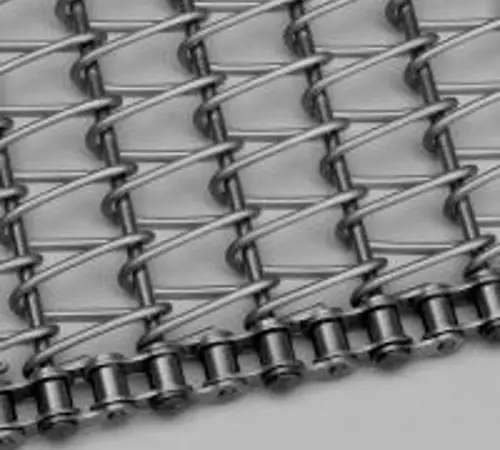

Type No. 0703

Wire belt made of round wire spirals with plain cross wires and 5/8" chains on the selvages.

Application: Industrial washing machines and various engineering industries.
Pitch of spiral wire: As required
Pitch of cross wire: 31,75 mm
Diameter of spiral wire: 1,5 - 4,0 mm
Diameter of cross wire: 5,0 mm

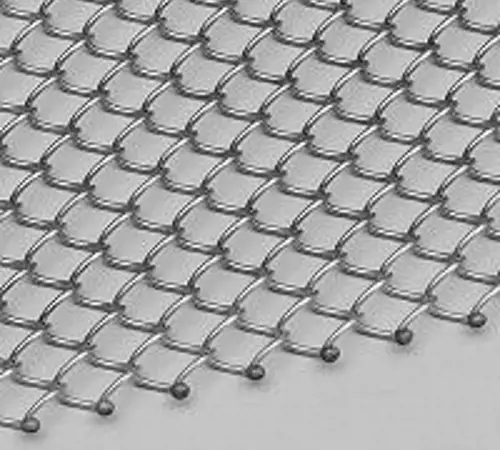

Type No. 0801

Plaiting wire netting belts of round wire spirals with single direction sections or left and right sections with welded selvages.

Application: Bakery and confectionery industries.
Mesh size: 3,0 - 30 mm
Diameter of spiral wire: 2,5 - 4,0 mm

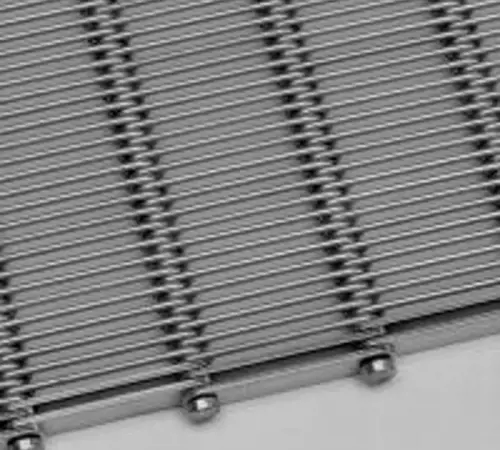

Type No. 0901

Wire loop belt with loops and plain cross wires.

Application: Foodstuffs, fish-processing and insulation materials industries.
Gap opening or with spacers between the wire loops. 2,0 - 2,5 mm
Pitch of cross wire: 50 mm
Diameter of loops: 2,0 - 2,5 mm
Diameter of cross wire: 5,0 or 8,0 mm

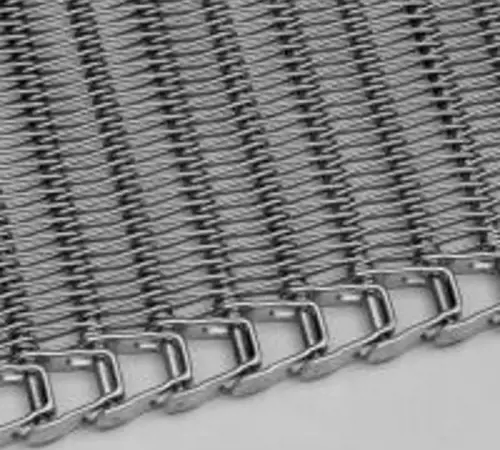

Type No. 1004

Balanced wire belt made of round wire spirals with plain cross wires and flexible links with 3/4" pitch.

Application: Foodstuffs and fish-processing industries as well as for industrial washing machines within the engineering industry.
Pitch of spiral wire: As required
Pitch of cross wire: 19,05 mm
Diameter of spiral wire: 1,5 - 2,0 mm
Diameter of cross wire: 5,0 mm

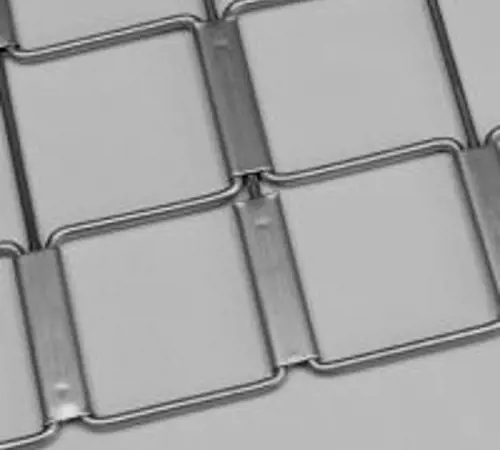

Type No. 1502

4 mm wire bent to square meshes connected together with joint plates. Manufactured in soft steel or stainless steel.

Application: Sorting potatoes.
Mesh size: As required
Diameter of wire: 4,0 mm
